H.E.A Blyde Canyon Solar Package 19.36 kW DC PV array, 16 kW hybrid inverters, and 40 kWh of lithium storage (No Installation)

H.E.A Blyde Canyon Solar Package 19.36 kW DC PV array, 16 kW hybrid inverters, and 40 kWh of lithium storage (No Installation)

R 393,995.00

Blyde Canyon Package

Blyde Canyon is a high‑capacity hybrid solar system built for large households, farms, and small businesses that need sustained autonomy, strong daytime generation, and installer‑grade reliability. It combines a very large bifacial PV array with dual hybrid inverters and a substantial lithium battery bank to deliver long backup windows, fast charging, and redundancy for demanding loads.

Key system capacities

  • PV array: 32 × JA Solar 605 W bifacial panels → ~19.36 kW DC.
  • Inverter capacity: 2 × Solis S6 8 kW Plus hybrid inverters → 16 kW AC total.

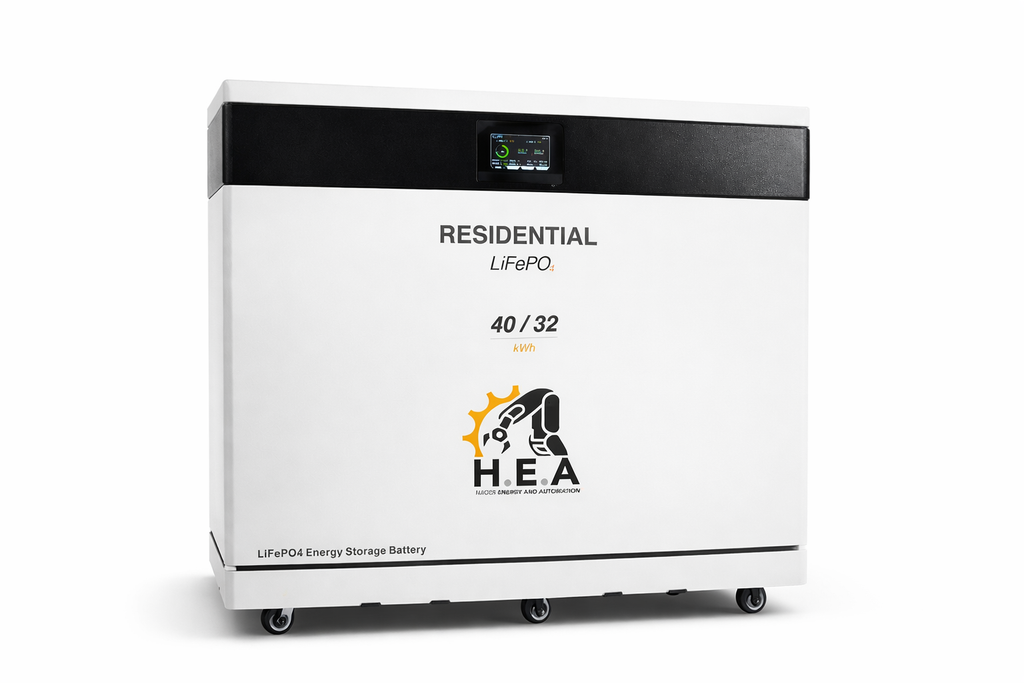

  • Battery storage: 1 × H.E.A 40/30 51.2v Residential battery → ~40 kWh nominal lithium capacity.
Quantity Description
1 PV on Roof and Hazard Labels Pack
5 35mm2 single-core 1000V HV DC cable 1m - Black
2.5 4mm2 single-core PV DC cable 50m - Red
3 Flat Twin + Earth 6mm2 10m 3C
5 35mm2 single-core 1000V HV DC cable 1m - Red
2 GP Housewire 10mm2 20m Black
1 PROJOY 63A Single Phase Change Over Switch
2 GP Housewire 4mm2 50m Green/Yellow Earth wire
1 GP Housewire 4mm2 50m Green/Yellow Earth wire
1 GP Housewire 10mm2 20m Green/Yellow wire
2 GP Housewire 6mm2 20m Red
2 GP Housewire 6mm2 20m Black
2 GP Housewire 10mm2 20m Red
2 25mm white 10m contractor pack c/w 10 glands
32 JA Solar 605W n-type Bifacial Double Glass Half-Cell MBB Traceable LB MC4
2 Dektite Lead Multicable Solar Flashing  (Tiled or Slate)
4 600V Protection Box 2 Inputs 2 Outputs 16A MCB Type II SPD
1 H.E.A 40/32 51.2v Residential battery
1 KETO 1 Battery Disconnector with 250A Fuses
2 Hager 50A MCB 6kA C curve 2P
2 Hager 32A MCB 6kA C curve 2P
1 Hager 63A MCB 6kA C curve 2P
1 Hager 24-way DB IP65 Surface Mount
1 Hager 63A RCD 30mA 4P Earth Leakage
2 Hager 40kA 275Vac 1ph+N 2P T2 SPD
1 Hager Green+Red LED indicator light 230V DIN
3 Scame Electrical Solutions 4 MOD. DIN Blank Strips for DB
1 EZI-TIE UV resistant cable ties 200x4.8mm - 100-pack
16 35mm2 by M8 Ring Terminal Lug
2 Solis Warranty Ext. of 5 years (Total 10y) for S6 Pro 6kW Hybrid
12 End Clamp+ 30 - 50mm Silver
32 Middle Clamp+ 30 - 50mm Silver
2 Wood screw slated tiles countersunk 6 x 80, pack of 100
108 Roof hook UK Plain tiles/slates (without wood screw)
16 VarioSole + End Cap 50X37 rail - RIGHT/LEFT Grey (1 pair)
16 VarioSole+ Rail connector for rail 50 x 37 mm.
16 VarioSole+ Mounting Rail 50 x 37 x 3300mm
18 MC4-Evo2A 1500V DC Connector Double Pack 0316/0317 (Kit 2)
1 K&N Single Phase AC Switch Disconnector 40A
1 3m CAN BMS cable for Solis with Hubble Lithium batteries
2 S6 8kW Plus Single Phase Low Voltage Hybrid Inverter with 10 Year Warranty
2 100x100mm White PVC Trunking, 3m length
3 50x50mm White PVC Trunking, 3m length
1 Delivery
